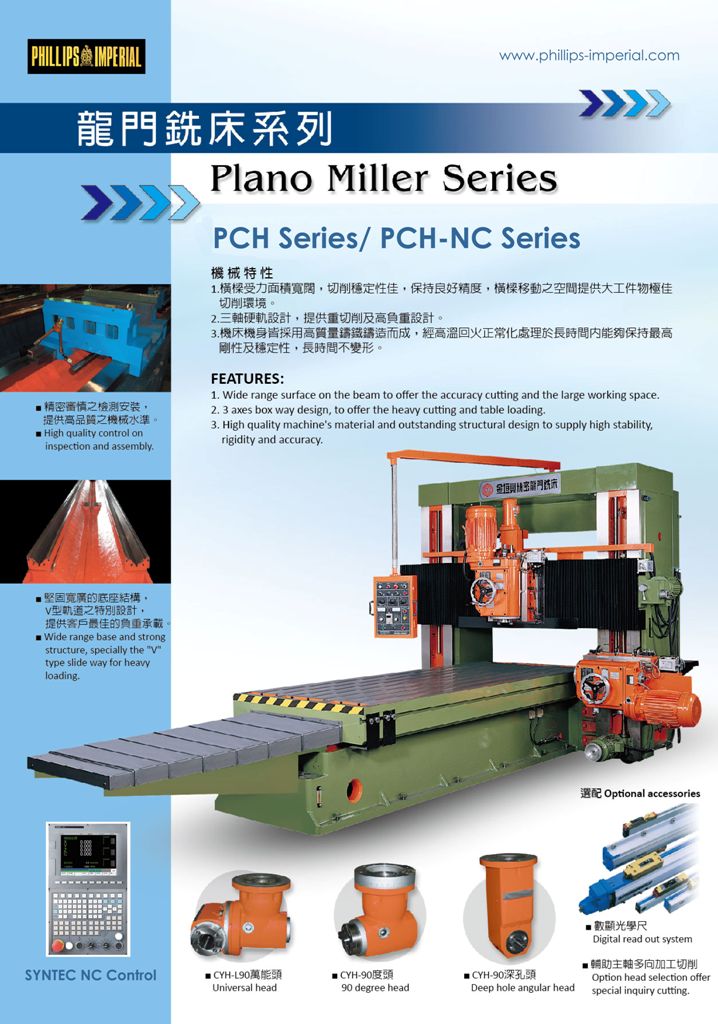

• Máy phay hai trụ

Specifications

Model Unit PCH-2012 PCH-2512 PCH-3012 PCH-4012
X Axis travel mm 2000 2500 3000 4000
Y Axis travel mm 1200
Z Axis travel(head) mm (std) (10HP)300/(15HP)400 or 600(opt)
Distance between the column mm 1230
Spindle nose to table surface mm 900
Table size mm 2000x800 2500x800 3000x800 4000x800
Vertical head motor HP 10(std)/15(opt)
Side head motor HP 10
Driving system mm Rapid 5 / Cutting 3 (teeth rate1:15)
Vertical head left / right motor HP 2
Beam up / Down motor HP 2
Cutting feed rate mm Variable speed
Machine weight kgs 11500 13500 15800 18000
Machine size L mm 6180 7300 8200 10500
W mm 3000
H mm 2700



Model Unit PCH-2015 PCH-2515 PCH-3015
X Axis travel mm 2000 2500 3000
Y Axis travel mm 1500
Z Axis travel(head) mm (std)(10HP)300/(15HP)400 or 600(opt)
Distance between the column mm 1530
Spindle nose to table surface mm 1000(std)/1200(opt)
Table size mm 2000x1200 2500x1200 3000x1200
Vertical head motor HP 10(std)/15(opt)
Side head motor HP 10
Driving system mm Rapid 5 / Cutting 3 (teeth rate1:15)
Vertical head left / right motor HP 2
Beam up / Down motor HP 2
Cutting feed rate mm Variable speed
Machine weight kgs 14000 16000 18500
Machine size L mm 6180 7300 8200
W mm 3300
H mm 2900



Model Unit PCH-4015 PCH-5015 PCH-6015
X Axis travel mm 4000 5000 6000
Y Axis travel mm 1500
Z Axis travel(head) mm (std)(10HP)300/(15HP)400 or 600(opt)
Distance between the column mm 1530
Spindle nose to table surface mm 1000(std)/1200(opt)
Table size mm 4000x1200 5000x1200 6000x1200
Vertical head motor HP 10(std)/15(opt)
Side head motor HP 10
Driving system mm Rapid 5 / Cutting 3 (teeth rate1:15)
Vertical head left / right motor HP 2
Beam up / Down motor HP 2
Cutting feed rate mm Variable speed
Machine weight kgs 20500 23000 26500
Machine size L mm 10500 12650 14580
W mm 3300
H mm 2900



Model Unit PCH-2515 PCH-3018 PCH-4018 PCH-5018 PCH-6018
X Axis travel mm 2500 3000 4000 5000 6000
Y Axis travel mm 1800
Z Axis travel(head) mm (std)(10HP)300/(15HP)400 or 600(opt)
Distance between the column mm 1830
Spindle nose to table surface mm 1000(std)/1200(opt)
Table size mm 2500x1400 3000x1400 4000x1400 5000x1400 6000x1400
Vertical head motor HP 10(std)/15(opt)
Side head motor HP 10
Driving system mm Rapid 5 / Cutting 3 (teeth rate1:15)
Vertical head left / right motor HP 2
Beam up / Down motor HP 2
Cutting feed rate mm Variable speed
Machine weight kgs 18300 20000 22500 25000 29000
Machine size L mm 7300 8200 10500 12650 14580
W mm 3680
H mm 2900





Máy phay hai trụ
