MÁY UỐN NẰM NGANG
HBM-40 / HBM-75 / HBM-40NC/ HBM-75NC

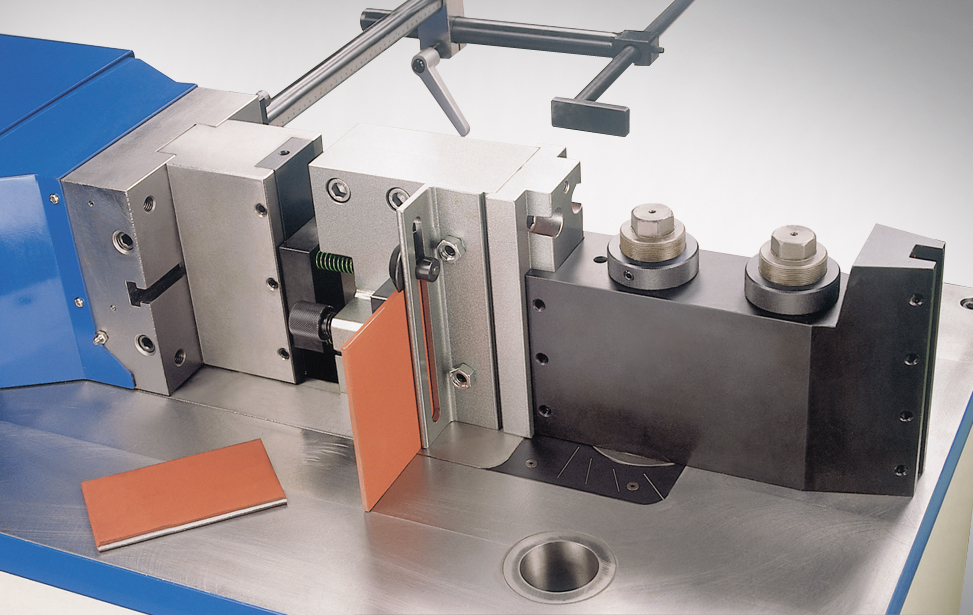

The hydraulic horizontal bending machine is the new addition to the SUNRISE product line of high quality and reliable hydraulic metal working machines.
A wide range of tooling is available for different bending operations.
We also customize special tooling for specific requirements
 |
 |
 |
 |
 |
 |
| Model | HBM-40M (HBM-45M) HBM-40 (HBM-45) HBM-40NC (HBM-45NC) |
HBM-75 (HBM-82) HBM-75NC (HBM-82NC) |
||
| Metric (mm) | Imperial (inch) | Metric (mm) | Imperial (inch) | |
| Lực ép xy lanh | 40 Tons | 45 Short Tons | 75 Tons | 82 Short Tons |
| Hành trình xy lanh | 250mm | 10" | 350mm | 13-3/4" |
| Tốc độ uốn | 9.6mm/sec | 0.38"/sec | 8.9mm/sec | 0.35"/sec |
| Tốc độ chạy về | 14.5mm/sec | 0.57"/sec | 9.9mm/sec | 0.93"/sec |
| Lỗ gá khuôn | ø83mm x 1 ø58mm x 3 |
ø3-1/4" x 1 ø2-9/32" x 3 |
ø118mm x 1 ø83mm x 3 |
ø4-5/8" x 1 ø3-1/4" x 3 |
| Chiều cao uốn tối đa | 200mm | 8" | 300mm | 12" |
| Khả năng uốn (Khuôn V đơn) |
200mm x 12mm | 8" x 1/2" | 300mm x 12mm | 12" x 1/2" |
| Cữ sau NC (Chỉ cho model HBM-NC) |
1016mm | 40" | 1016mm | 40" |
PHỤ KIỆN TÙY CHỌN
| Model | HBM-40M (HBM-45M) HBM-40 (HBM-45) HBM-40NC (HBM-45NC) |
HBM-75 (HBM-82) HBM-75NC (HBM-82NC) |
||
| Metric (mm) | Imperial (inch) | Metric (mm) | Imperial (inch) | |
| Khả năng đột | ø30mm x 9mm | ø1-1/8" x 3/8" | ø30mm x 15mm | ø1-1/8" x 5/8" |
| Cắt thép la (W x T) | 170mm x 12mm | 6-21/32" x 15/32" | 170mm x 16mm | 6-21/32" x 5/8" |
| Khả năng uốn ống (90◦ bend) | ø3/8" ~ ø2" | ø3/8" ~ ø2" | ø3/8" ~ ø2" | ø3/8" ~ ø2" |
| Nắn thẳng (Max profile) | 200mm | 8" | 300mm | 12" |
| Uốn mép thanh phẳng (W x T) | 50mm x 12mm | 2" x 15/32" | 50mm x 12mm | 2" x 15/32" |
| Chiều cao làm việc | 930mm | 37" | 950mm | 37-1/2" |
| Công suất điện | 5HP | 5HP | 7.5HP | 7.5HP |
